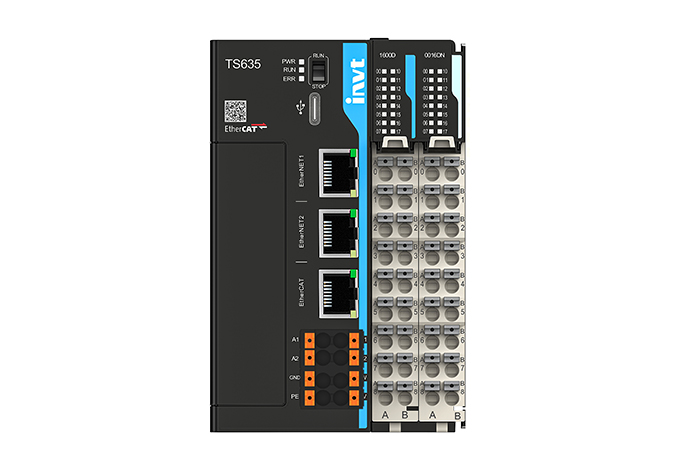

TS600 Series Intelligent PLC
INVT TS600 series intelligent PLC integrates high-performance embedded technology and adopts a high-speed bus system architecture. It combines four types of automation control—sequential, process, information, and motion—within a unified system. Real-time control and complex calculations are achieved through highly reliable hardware and software systems.
The PLC also offers open communication interfaces, IoT networking, and a distributed modular architecture. With fully self-developed programming software and customizable services, programming becomes flexible and user-friendly. When combined with INVT's VFDs, servos, HMIs, and IoT products, the TS600 enables one-stop automation solutions.
Key Features
High Performance
Efficient operation with a 1GHz main frequency, and compiler-based instructions with bit operation speeds up to 0.01μs.
Powerful Motion Control
High-speed motion control for complex processes. Supports 4/8-axis pulse control and EtherCAT motion control.
Easy Connectivity
Multi-protocol support for interconnectivity. Dual Ethernet ports for easy cascading and network isolation.
Easy Programming
Complies with IEC 61131 standards, supporting LD, SFC, IL, and C languages with unified motion control instructions.
Flexible Expansion
CPU equipped with 8/16 digital inputs and 8/16 digital outputs as standard, compatible with Flex series I/O modules.
Cloud Collaboration
Supports VPN remote upload/download, 4G/Wi-Fi/RJ45 transmission methods, and cloud-edge collaboration.
Technical Specifications
| Main Frequency | 1GHz |
| Bit Operation Speed | Up to 0.01μs |
| Motion Control | 4/8-axis pulse control, EtherCAT motion control |
| Synchronization | 16-axis within 1ms, expandable to 32-axis within 2ms |
| Digital I/O | 8/16 DI, 8/16 DO (standard) |
| Communication | Dual Ethernet ports, Multiple protocols |
| EtherCAT Stations | Up to 72 slave stations |
| Programming Languages | IEC 61131: LD, SFC, IL, C |
| Connectivity | 4G/Wi-Fi/RJ45, VPN, MQTT, API |
Applications
- Manufacturing Automation
- Process Control
- Motion Control Systems
- Packaging Machinery
- Textile Industry
- Food & Beverage
- Building Automation
- IoT Integration
